New European Tones in the Sprinter Siren!
BenefitsThe Sprinter control head is ergonomically designed and easy to use, especially in “quick response” situations. The backlit control head allows the officer to easily select the light and siren functions.
The pocket sized control head (same size as a smart phone) can be mounted easily where space is limited.

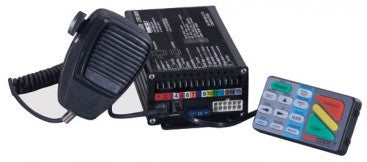

The amplifier is also compact with a small footprint and low profile – also ideal where space is limited.
The entire unit is solidly constructed with the amplifier and control head passing environmental EMC testing.
As an added bonus the powerful Sprinter is both SAE J1849 and California Title 13 compliant.
The Sprinter also has increased cooling capabilities and power surge protection ensuring long life!
Design FeaturesSiren Capabilities:
Full 100W Output and SAE Sound Pressure Tested/Certified
Primary Tones: Wail, Yelp, Hi-Lo, Manual
PA with Built-In Noise Cancelling Microphone with Integrated Volume Control
Password Protected Volume and Programming Functions
Programmable Siren Controls including Air Horn
International Siren Tones
Vehicle Light Control Buttons
Park Light Function
Horn Ring Option
Backlit Buttons with On/Off Intensity Change
Built-In 4 Point Screw Mounting System
Internal REI Coated Control Head
Externally Accessible 15A Fuse
Control Head comes with Extension Cable
Black Powder Coat Painted Aluminum Extrusion
General SpecificationsControl Head: 3.7″L (93.98 mm) x 2.0″H (50.8 mm) x 0.65″D (16.51 mm)
Amplifier: 7.6″L (193.04 mm) x 3.6″W (91.44 mm) x 2.0″H (50.8 mm)
Input Voltage 10-15 VDC (negative ground)
24 Volt Version Available
Input Current 10 Amps @ 13.6 VDC
Output Voltage Maximum 100W @ 12 VDC
Operating Temperature -30°C to +65°C
Siren (approx): 4.0 lbs
Controller (approx): 0.5 lbs
Compliance: SAE J1849, ECE Reg 10, California Title 13
