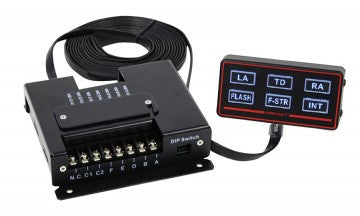

Code 3 Remote Rocker Max Pak Switch 450R-L6

Regular price $250.00 USD
Regular price Sale price $250.00 USD
Sale Sold out
Tax included.

The Remote Rocker Max Pak Switch allows users to program, customize, and control unique warning packages with a single switch box.


  • Allows user to easily program, customize, and control unique warning packages with a single rocker switch box
  • Simplifies installation with a compact, lightweight switch box that can be mounted in small, tight spaces, e.g., trunk, under seat, behind second row truck bench
  • Allows user to quickly identify and switch through functions with a backlit controller

Design Features

  • Top three buttons can be programmed as progressive level 1, 2, 3 outputs
  • All six can be programed as independent momentary, on/off, and timed output (8 sec)
  • Rubber membrane buttons are backlit in blue lighting
  • Fuse box located on top of switch box for easy accessibility
  • 15 foot cable between controller and switch box
  • Swivel style bracket or mount

General Specifications

  • Switch Box: 5.2” W x 5.3” L x 1.5” D (132 x 135 x 38 mm)
  • Control head: 2” W x 3.9” L x 0.9” D (51 x 99 x 23 mm)
  • 12VDC
  • Switch box: Four-hole flange mounting on base
  • Controller: Two mounting holes provided on controller bracket
  • One 40 ampere and five 15 ampere connections
  • SAE J575 Environmental
  • Two-year warranty
  • Switch Box: 1.1 lbs
  • Controller: 0.2 lbs
  • Standby Current: 85 mA
  • Operation Temperature: -40ºC (40ºF) to +77ºC (170ºF)
